FY301
Smart Valve Positioner

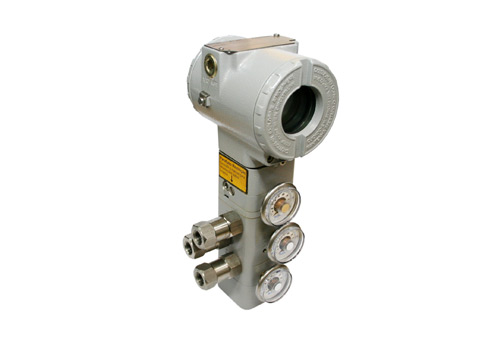

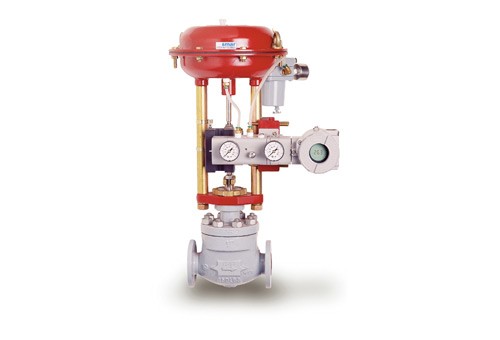

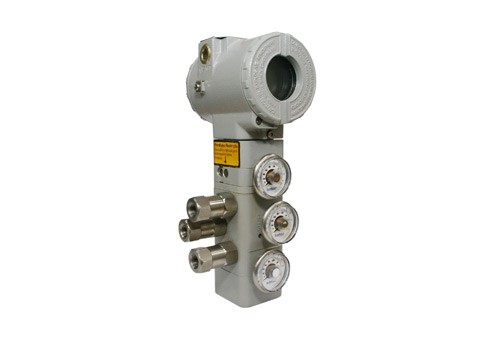

The FY301 microprocessor based positioner provides fast and accurate positioning of diaphragm or cylinder actuators. The FY301 produces a pressure output as required to position a control valve according to a 4 to 20 mA input signal supplied by a controller. The FY301 is part of SMAR's complete 301 series of smart devices.
- Compact and modular design;
- Low air consumption;
- Easy installation;
- Direct non-contact position sensing;
- Operate with rotary or linear motion, single or double acting pneumatic actuators;
- Easy adjustment and parameter settings with remote HART® communication local adjustment and display;
- Weather proof, explosion proof and intrinsically safe;
- Flow Characteristics change with software cams.
FYCAL - Calibration Device for Smar Pressure Transducer
Some Characteristics:
|
Input
|
2-wire, 4-20 mA
|
|
Output
|
Output to actuator 0-100% supply air pressure. Single or double-action.
|
|
Output Capacity
|
13.6 Nm³/h (8 SCFM) at 5.6 bar (80 psi) supply
|
|
Power Supply
|
Supplied by the 4-20 mA current
|
|
Configuration
|
Using local adjustment magnetic tool, remote configuration using HHT
|
|
Pressure Supply
|
1.4-7 bar (20-100 psi). Free of oil, dust and water
|
|
Actual Position Sensing
|
Magnet (Non-contact) via Hall effect
|
|
Indication
|
Optional LCD indicator
|
|
Material
|
Injected low copper aluminum with polyester painting or 316 stainless steel housing
|
|
Process Temperature Limits
|
-40 to 85ºC (-40 to 185 ºF)
|
|
Ambient Humidity Limits
|
0 to100 % RH
|
|
Hazardous Area Certification
|
Explosion proof, weather proof and intrinsically safe
|
|
Weight
|
Nominal: 2.7 kg;
Digital display adds: 0.1 kg. |
