TT400SIS

Safety Instrumented Systems are designed and used to prevent or mitigate hazardous events to protected people, the environment or prevent damage to process equipment. The SIS project is based on the damage that a failure can cause.

The TT400SIS is certified to IEC61508 for SIL 1 and SIL 2 (non-redundant) and SIL 3 (redundant) applications.

TT400SIS offers:

• ± 0.02% accuracy;
• Built-in thermocouples and RTD’s linearization;
• Small and lightweight;

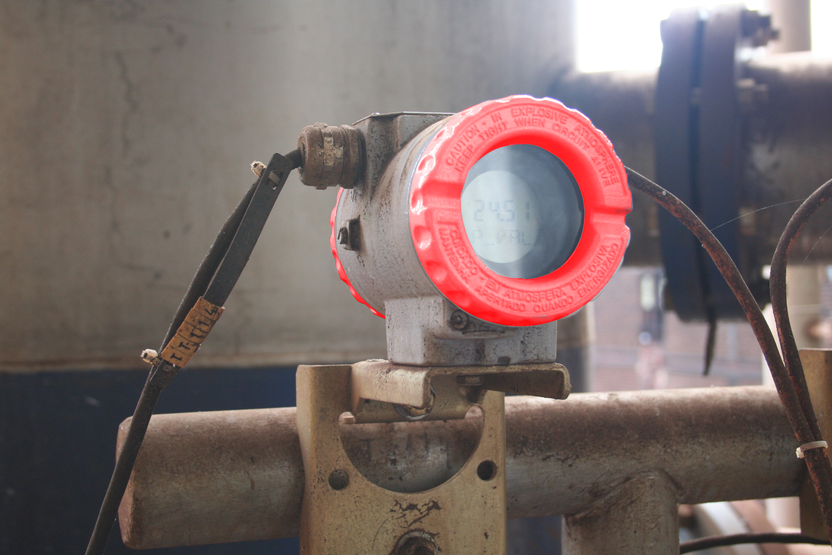

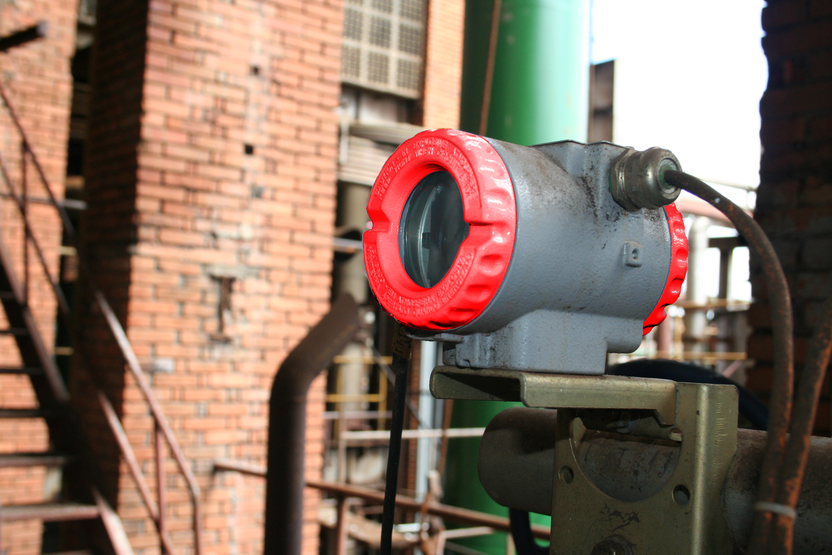

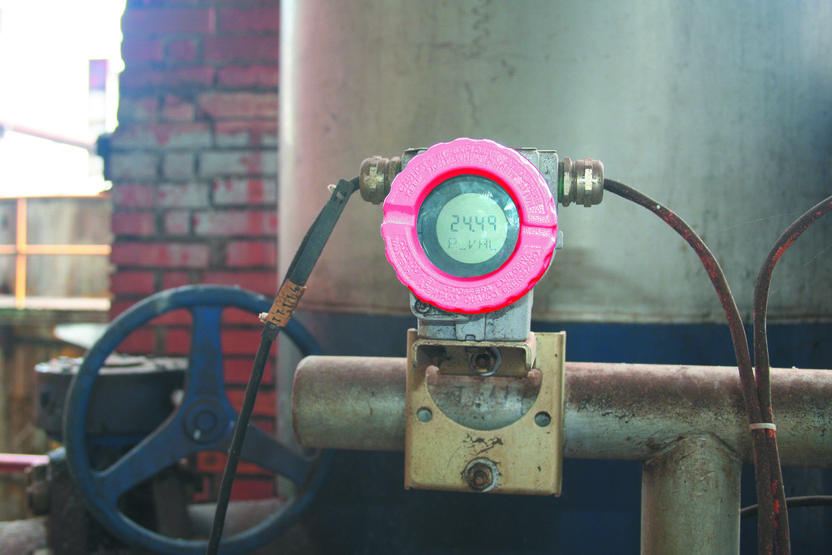

The SMAR TT400SIS is a transmitter mainly intended for measurement of temperature using RTD’s or thermocouples.

The TT400SIS accepts up to two sensors and may operate in one of the models.

• Single channel with single sensor measurement; Single channel with two sensors (same type) in differential measurement;
• Single channel with two sensors (same type) in backup measurement;
• Single channel with two sensors (same type) with maximum, minimum or average signal selection.

The SMAR TT400SIS is a powerful and extremely versatile smart temperature transmitter. The digital technology used on it enables a single device to accept several types of sensors, wide ranges, single or multiple-ended measurement and an easy interface between the field and the control room. It also includes several features which reduce considerably the installation, operation and maintenance costs.

Features

• 0.02% Accuracy;
• Remote configuration via Hand-Held Terminal or via PC;
• Small and lightweight;
• Intrinsically safe;
• Signal simulation for loop test;
• It is certified to IEC61508 for SIL 2 (non-redundant) and SIL 3 (redundant) applications;
• EMC (Electromagnetic Compatibility) according to IEC 61326-1:2005 and IEC 61326-3- 2:2008;
• Write protection function;
• Universal input accepts several thermocouples, RTD’s, mV and Ohm.

HART^® - 4 to 20 mA

• 2-wire, 4-20 mA output plus direct digital communication;
• Output current with 1.5uA/bit resolution;
• Improved performance due to dedicated math coprocessor;
• Match sensor (Callendar Van Dusen equation);
• Maximum, minimum and average input sensor selection, working with two sensors simultaneously;
• Supports FDT/DTM, DDL/EDDL.
