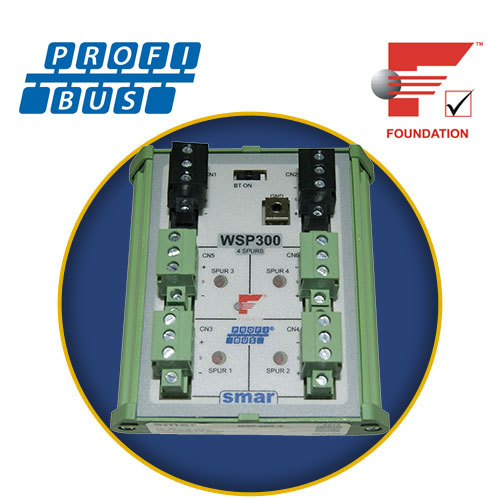

WSP300
Intelligent Segment Protector for FOUNDATION™ fieldbus, PROFIBUS-PA
The WSP300 offers spur protection against short circuits (between + and – terminals), limiting the short circuit current in each spur. During a short circuit situation there is no effect in the other spur or the main trunk. There is a LED to indicate short circuits and WSP300 has an integrated bus terminator in the models F and P.
In normal operation, each short circuit protector consumes less than 3 mA. After removing the short circuit, the spur goes back to normal operation, the protection circuit is disabled and the LED is dimmed.
- Intelligent Segment Protector for fieldbus installations in compliance with the IEC61158-2 standard (PROFIBUS PA and FOUNDATION™ fieldbus);
- 4, 6 or 8 spurs;
- Intelligent protection against short circuit in each spur, preventing the short circuit propagation. After removing the short circuit, the spur goes back to normal operation;
- For panel mounting or field installation in junction boxes;
- Integral part of JB400 – Intelligent Junction Box;
- Quick and easy installation;
- Maintenance during operation.
To better serve your application, the intelligent segment protector WSP300 is available in the following models:
- F – For FOUNDATION™ fieldbus networks
- P – For PROFIBUS PA networks
See separately their technical characteristics.
|
Physical layer |
In compliance with IEC 61158-2 |
|
Power supply |
Bus-powered 9 to 32 Vdc |
|
Communication protocols |
PROFIBUS PA and FOUNDATION™ fieldbus |
|
Maximum trunk current |
2.5 A |
|
Quiescent current per spur in normal operation |
< 1 mA |
|
Maximum current per spur during a short circuit |
50 mA |
|
Maximum voltage drop per spur |
0.3V@20mA |
|
Number of spurs |
4, 6 or 8 |
|
Spur connections |
Removable 3-pin terminal blocks, 2.5 mm² |
|
Surge protector at input |
Cut in 62 V, 1500 W |
|
Mounting |
Via DIN rail |
|
Terminator |
100 Ω resistor and 1µF capacitor selectable by switch |
|
Status LED |
On (red): spur in short circuit condition; |
ENVIRONMENTAL CONDITIONS
|
Operation Temperature |
-20°C to 70°C |
|
Storage |
-40°C to 85°C |
|
Humidity |
0-95% non-condensing |
DIMENSIONS
|
Dimensions (mm) |
100x125x57 (WSP300-4) |
